Peb lub lag luam tseem ceeb: Hlau hmoov, Hluav taws xob muab tshuaj txhuam, Cov ntaub ntawv Brazing, 3D luam ntawv / VIGA khoom, R & D ntau lawm thiab muag khoom ntawm cov khoom customized.
Pab neeg tshaj lij
Tus thawj coj ua lag luam saum toj kawg nkaus
Senior project managers zoo tswj txhua yam ntawm qhov project
7x24 xuab moos shipping
7x24 teev kev xa khoom muaj peev xwm, yog tus khub zoo tshaj plaws rau kev lag luam thoob ntiaj teb.
3
VIGA Kab
1
Dej & Roj Atomizer Kab
1
Plasma Atomizer Kab
236M
Ua tiav qhov project
Hunan Mana Materials Technology Co., Ltd. yog nyob rau hauv Changsha nroog, Hunan xeev, Suav teb, uas yog lub hometown ntawm non-ferrous hlau.Mana yog ib tug technology enterprise tsom mus rau kev tshawb fawb thiab kev loj hlob, tsim thiab muag khoom ntawm cov ntaub ntawv tshiab.Tam sim no, cov khoom tseem ceeb ntawm kev muag khoom muaj xws li hluav taws xob. muab tshuaj txhuam, hlau hmoov, cov ntaub ntawv brazing, 3D luam ntawv / VIGA khoom, R & D ntau lawm thiab muag khoom ntawm customized khoom. Nrog ntau tshaj kaum xyoo ntawm hlau hmoov manufaturing tshuab thiab kev paub, peb muab cov khoom zoo sib tw.
01
Siab Zoo
02
Khoom siv Advanced
03
Pab neeg tshaj lij
04
Kev kho kom haum
Nrog rau txoj kev loj hlob ntawm precision ceramics raws li cov khoom siv nyob rau hauv xyoo tas los no, kev daws teeb meem ntawm ceramic-hlau kev twb kev txuas yog sai heev, thiab nws yog ib qho tseem ceeb teeb meem uas yuav tsum tau daws nyob rau hauv daim ntawv thov ntawm ceramics! Yog li ntawd, ntau lub teb chaws suav nrog kev sib txuas ceramic-hlau yog ib qho tseem ceeb hauv kev siv tshuab!
Raws li ib tug ntawm cov tseem ceeb txoj kev ntawm ceramic-hlau kev twb kev txuas, active hlau txoj kev muaj incomparable zoo ntawm lwm txoj kev tshwj xeeb tshaj yog rau kev sib txuas ntawm precision ceramics. Kev tsim khoom thiab lwm yam, uas qhia meej meej.
Tus yuam sij rau ceramic-hlau active kev twb kev txuas yog active solder. Tam sim no, muaj kaum series thiab 175,000 alloys ntawm active solder uas tau kawm thiab siv. Qhov dav siv yog Ag-Cu-Ti brazing muab tub lim.
Khoom Specification
|
Cheebtsam |
Ag |
Ti |
Cu |
- |
- |
- |
|
Txheem% |
63-65 |
1.2-2 |
Bal. |
- |
- |
- |
Lus Cim: Hmoov / Muab Tshuaj txhuam yog pheej yig.
silver Based Brazing Alloy
|
AWS |
Chemical Composition (wt%) |
Ua kua theem (degree) |
Brazing kub (degree) |
|
BAg100B/Ag-0 |
Ag Ntau dua lossis sib npaug rau 99.95 |
961 |
961-1038 |
|
BAg72Cu/BAg-8 |
Ag71-73/Cu Bal. |
779 |
779-899 |
|
wb 92cu |
Ag91-93/Cu Bal. |
779-872 |
871-982 |
|
BAg45CuZnSn/BAg-36 |
Ag44-46/Cu26-28/Zn23-27/Sn2.5-3.5 |
646-677 |
677-813 |
|
BAg56CuZnSn/BAg-7 |
Ag55-57/Cu21-23/Zn15-19/Sn4.5-5.5 |
618-652 |
652-760 |
|
BAg25CuZnSn/BAg-37 |
Ag24-26/Cu39-41/Zn31-35/Sn1.5-2.5 |
688-779 |
779-885 |
|
BAg50ZnCuNi/BAg-24 |
Ag49-51/Cu19-21/Zn26-30/Ni1.5-2.5 |
660-707 |
707-843 |
|
Ag43.6 CuInTi |
Ag42.6-44.6/In22.3-25.3/Ti2.5-3.5/Cubal |
540-650 |
680-800 |
|
AgCuTi 4.5 |
Ag68.7-70.7/Ti4-5/Cubal. |
770-810 |
830-930 |
|
AgCuTi 2 |
Ag68.7-70.7/Ti1.5-2.5/Cubal. |
780-805 |
825-927 |
|
AgCuTi 3.3 |
Ag68.7-70.7/Ti2.8-3.8/Cubal. |
780-810 |
850-930 |
Khoom Khoom

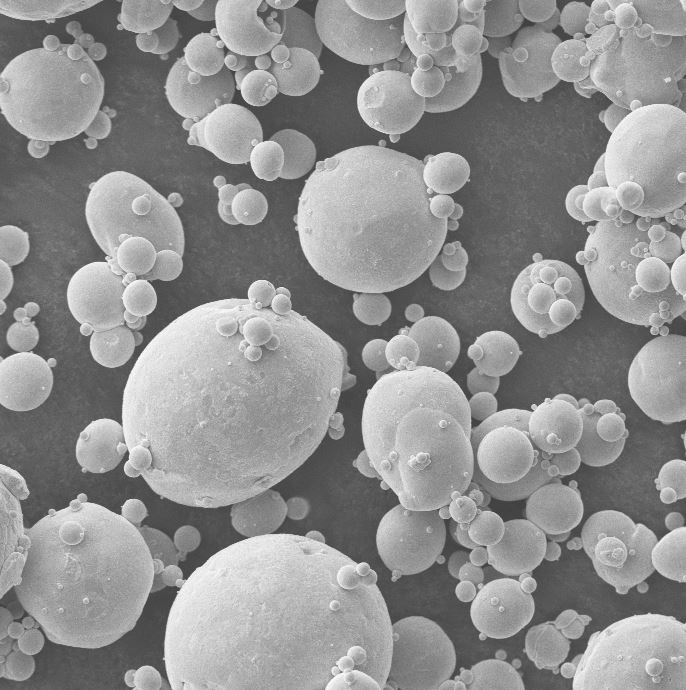

1. Daim ntawv: hmoov / muab tshuaj txhuam / ntawv ci
2. Lub Sij Hawm Ua Kua: 780-805 degree
3. Brazing Kub: 825-927 degree
4. Tsim nyog Base Khoom: Ceramic / Pob zeb diamond / Graphite / Titanium / Hlau
Daim ntawv thov
Dav siv rau lub tshuab nqus tsev brazing ceramics, graphite, pob zeb diamond, kovar alloy, superalloy, stainless hlau, thiab lwm yam.
Daim ntawv thov

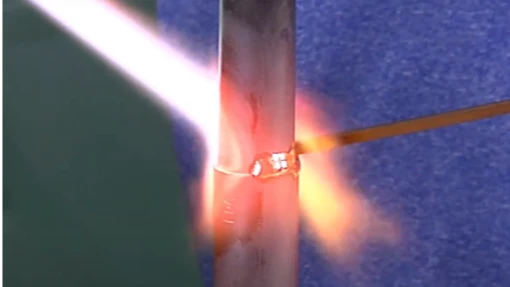

Induction brazing
Cemented Carbide brazing
Pob zeb diamond brazing

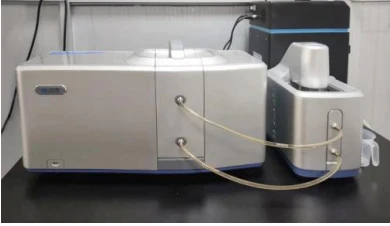

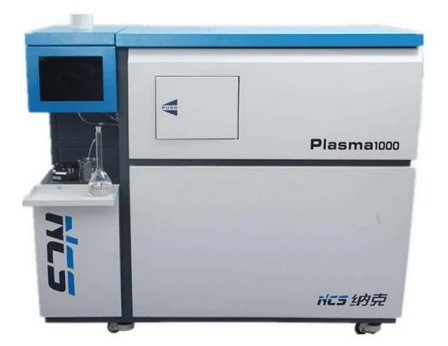

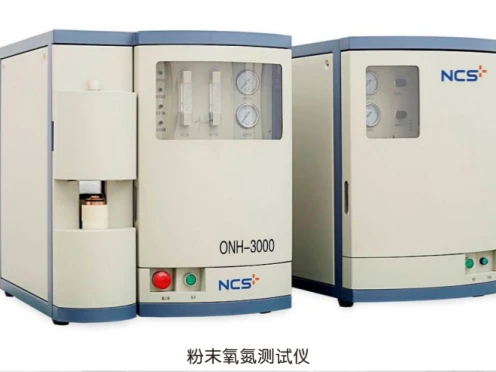

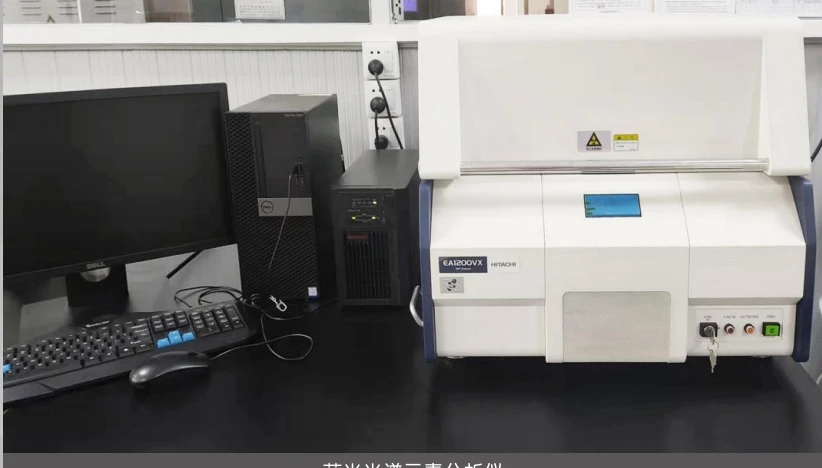

Peb lub Hoobkas & khoom siv
Peb lub Hoobkas & chaw ua haujlwm
Cov ntawv pov thawj

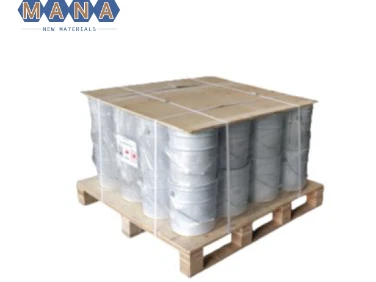

Peb Ntim
FAQ
1. Peb yog leej twg?
Peb nyob hauv Hunan, Tuam Tshoj, peb cov khoom muag rau Asia, Europe, America, North America thiab Southeast Asia, thiab peb muaj peev xwm ua tiav kev lag luam thoob ntiaj teb. Muaj tag nrho txog 101-200 tus neeg hauv peb lub hoobkas
2. How Peb puas tuaj yeem lav qhov zoo?
Ib txwm ua qauv ua ntej ua ntej ntau lawm;
Kev soj ntsuam zaum kawg ua ntej ua zaub mov xa tuaj;
3. Wkaus mom Koj Puas Yuav Tau Los Ntawm Peb?
3D luam ntawv hlau hmoov,MIM hmoov, Brazing hmoov & muab tshuaj txhuam, hluav taws xob muab tshuaj txhuam, cov khoom lag luam suav nrog yog 316L, 17-4ph, H13, FeSiAl, Inconel718, Inconel625, Silver based filler metal, Copper based filler metal, Nickel based filler metal, Silver paste, Rare earth cov khoom.
4. Vim li cas Koj Yuav Tsum Yuav Los Ntawm Peb Tsis Los Ntawm Lwm Tus Neeg Muag Khoom?
Hunan Mana Materials Technology Co., Ltd yog ib qho kev tsim cov hlau hmoov thiab muab tshuaj txhuam .High purity tsawg lub ntiaj teb series thiab lwm yam khoom thiab lwm yam Peb muaj Hoobkas. Peb paub tseeb tias peb tuaj yeem muab cov khoom lag luam zoo nrog tus nqi sib tw.
5. Wkaus mom Kev Pabcuam Peb Puas Muaj Peev Xwm?
Txais Cov Lus Cog Tseg: FOB, CIF, EXW, DDP, DDU, Express Delivery;
Txais Kev Them Nyiaj: USD, RMB
Hom Kev Them Nyiaj: T / T, Paypal
Lus Hais: Lus Askiv, Suav
Hot Tags: cuzn45 brazing muab tub lim hlau, Tuam Tshoj, lwm tus neeg, Hoobkas, customized, nqe, pheej yig, rau txheej, rau 3D luam ntawv, Silver Based Brazing Alloy, CuSnTi Brazing Filler Hlau, CuP8 Brazing Filler Hlau, Silver Based Brazing Alloy, CuSnTi Brazing Filler Hlau, CuP8 Brazing Filler Hlau
Lus Cim: Raws li cov chaw tsim khoom thiab xa tawm nrog ntau tshaj 10 xyoo kev xa tawm, peb paub cov khoom twg tuaj yeem ua tau raws li kev lag luam sib txawv. Peb muaj kev ntseeg siab rau peb cov khoom zoo thiab kev sib tw
