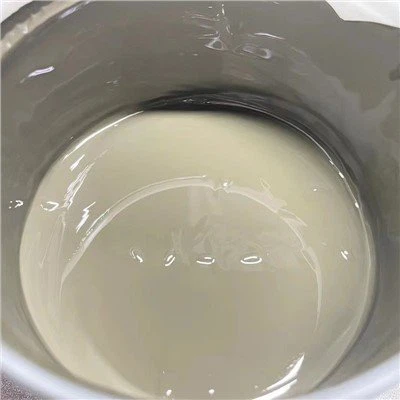

MANA-Ag-6800 halogen-dawb conductive silver paste
MANA-Ag-6800 yog ib tug silver grey high-performance halogen-dawb conductive number case. Cov khoom no yog tsim rau kev tshuaj ntsuam luam ntawv. Nws muaj qhov zoo tshaj plaws luam tawm, nruab nrab ci kub, zoo bending kev ua tau zoo, adhesion thiab conductivity.It muaj txhim khu kev qha dabtsi yog khoov tsis kam, zoo heev printing workability, thiab ua raws li cov cai txwv halogen thiab RoHS cov khoom muaj feem xyuam.
Khoom Properties:
Qib | MANA-Ag-6800 halogen-dawb conductive silver paste |
Qhov xwm txheej | muab tshuaj txhuam |
Qhov tshwm sim | nyiaj grey |
Yooj yim | 2 kg, 5 hloov tsawg dua los yog sib npaug rau 100 feem pua. |
Kev nruj | Zoo |
Hardness | (45 degree kaum sab xis, 2Kg siab mem hluav slurry thawb nto): Ntau dua lossis sib npaug li 2H; |
Adhesion (N) | (3M600 daim kab xev yog daig rau 60s ntawm lub kaum sab xis ntawm 135 degrees 10cm / s): tsis poob tawm |
Sheet Resistance (mΩ / □) | ＜12 |
Pom zoo siv txheej txheem:
Substrate: PET lossis PC;
Ua haujlwm kub: txog 25 degree pom zoo;
Screen: 200 ~ 300 mesh polyester screen lossis stainless hlau npo luam ntawv;
Diluent: tshwj xeeb thinner muab los ntawm peb lub tuam txhab yuav tsum tau tov tag nrho ua ntej siv;
Hardening tej yam kev mob (pom zoo): ziab kub 145 degree ~ 150 degree, ziab lub sij hawm 40 ~ 90min;
Tus neeg saib xyuas tu: butyl acetate, cyclohexanone
Teeb meem xav tau kev saib xyuas:
1. Kev siv nyab xeeb: Halogen dawb conductive number case muaj cov kuab tshuaj organic, uas yuav tsum tau ua kom cua zoo thaum siv kom tsis txhob nqus pa ntau dhau; Ink muaj teeb meem yog tias nqos, nqus tau lossis sib cuag nrog daim tawv nqaij, yog li nws yuav tsum tau ntxuav kom huv si tam sim ntawd tom qab siv kom tsis txhob sib cuag nrog lub qhov muag, tawv nqaij lossis khaub ncaws. Thaum tsis siv, npog kom nruj kom tsis txhob ua pa tsis haum cov pa roj, thiab tswj cov huab cua ncig thaum siv;
2. Tus cwj mem no yog cov khoom npaj siv thiab tsis tas yuav diluted. Yog tias nws yuav tsum tau diluted, thov siv cov thinner tshwj xeeb ntawm peb lub tuam txhab. Cov nyiaj ntxiv yuav tsum tsis pub tshaj 2 feem pua (qhov hnyav piv). Cov thinner ntau dhau yuav cuam tshuam ncaj qha rau tus number case kev ua haujlwm;
3. Lub thickness ntawm cov ntawv luam tawm nws tus kheej tsis tuaj yeem tsawg dua 3μm.Lwm yam, cov khoom siv hluav taws xob ntawm tus number case tsis ruaj khov;
